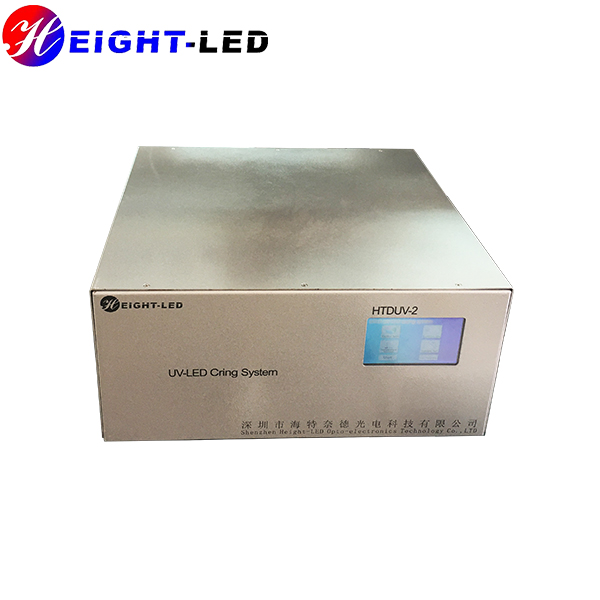

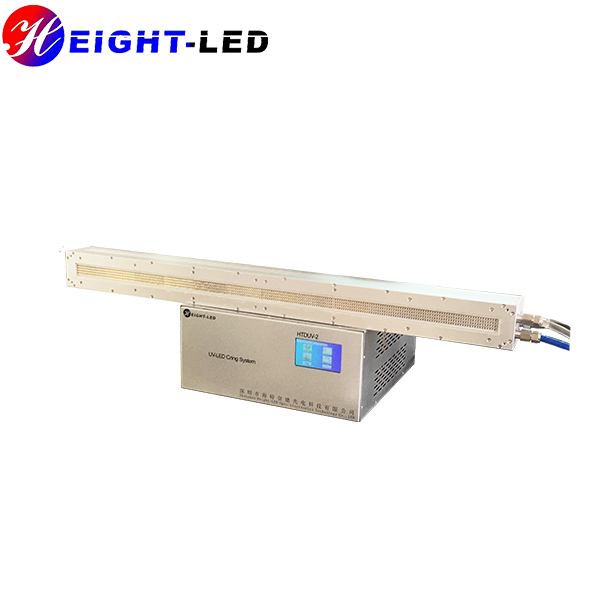

This is a high-performance UVLED system. The system\'s UVLED irradiation head is integrated with imported high-intensity ultraviolet LEDs. The UV spectrum wavelength is 365nm, the cooling method is water cooling, and the effective curing area is 920X20mm. It supports external signal input and triggering, and can be equipped with semi-automatic Or fully automatic production line.
The UVLED curing surface light source equipment characteristics
1. No infrared radiation, cold light source, suitable for curing all kinds of heat
sensitive materials.
2. No warm-up is required when starting up, and it is ready to use immediately,
reaching the maximum light intensity instantaneously.
3. The service life is long,it is more than 20000 hours.
4.Power saving, simple and easy to control.
5. Mercury-free, ozone-free, safe and environmentally friendly.

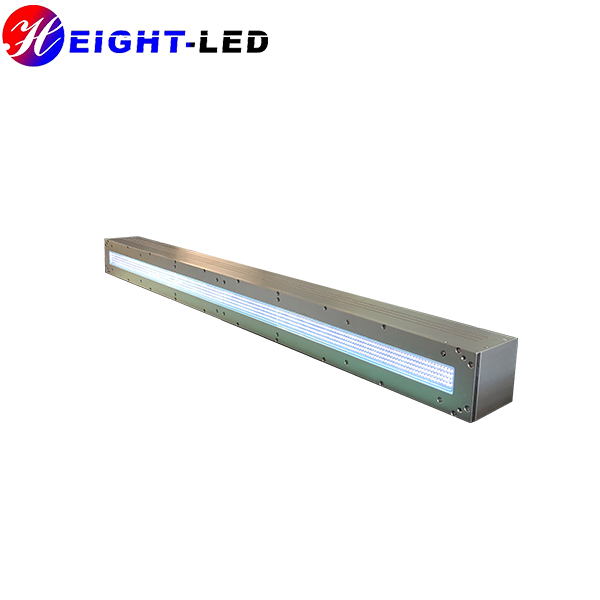

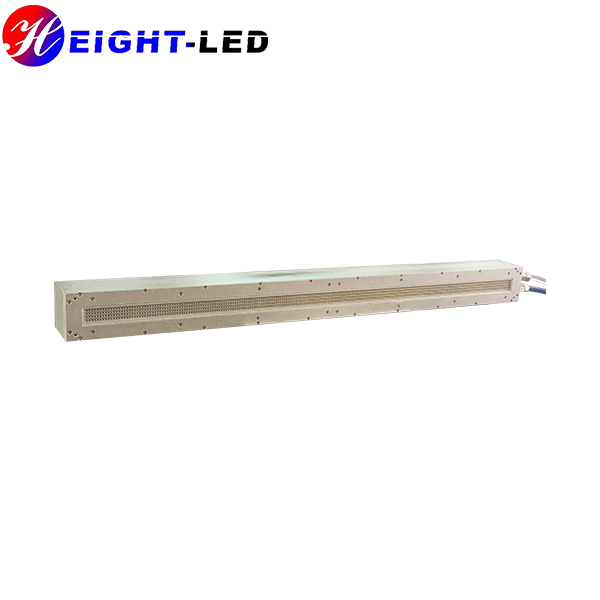

uvled area curing light source 920x20mm：
Wavelength
Electric Power
Optic Power
Curing Area
Cooling Method
365nm
2592W
4361mW/cm2
920x20mm
Water Cooling
395nm
8722mW/cm2
Various wavelengths and different specifications can be customized accoring to your demand
