The UV LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

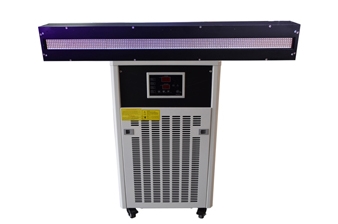

XYUV-4II-SN60030-NH is a high quality UVLED surface light sourc curing system, the system includes the controller, UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 600x30mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line and printing machine.

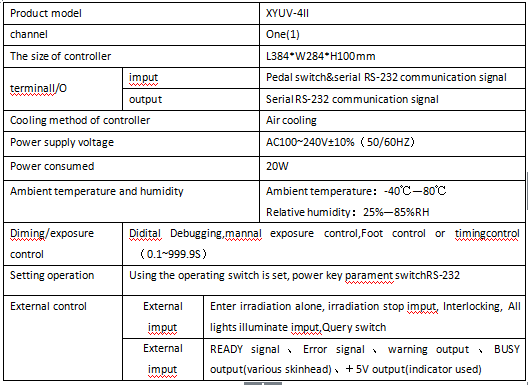

Technical data of controller:

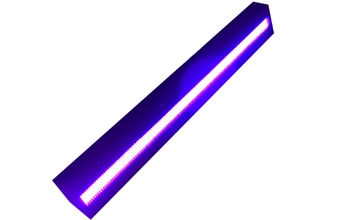

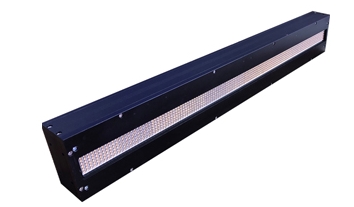

Technical data of uv light:
Wavelength
Electric Power
Optic Power
Curing area
Cooling method
395nm
2376W
14000mW/cm2
600x30mm
Water cooling
