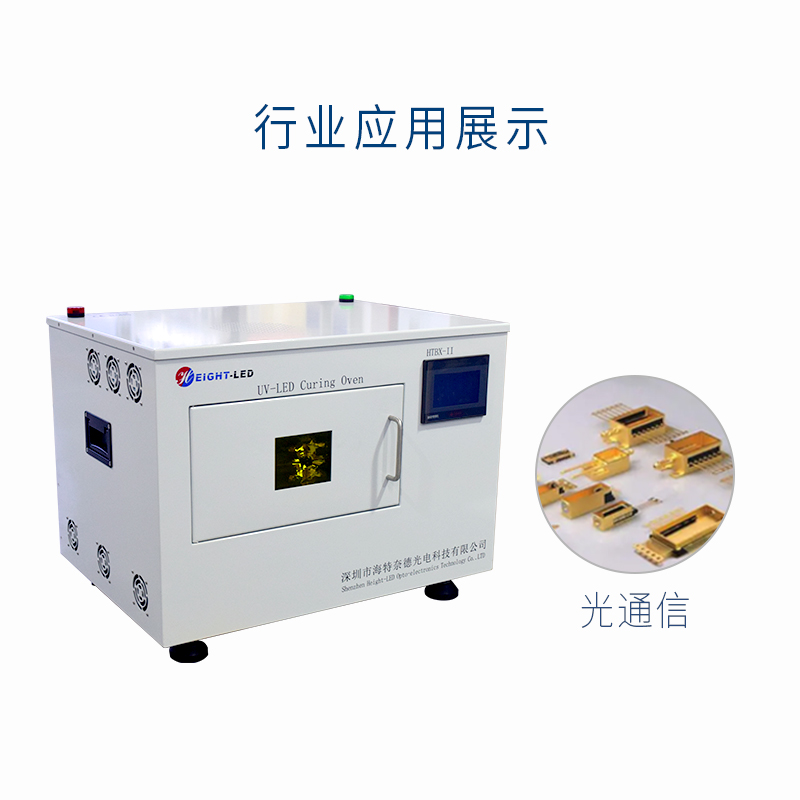

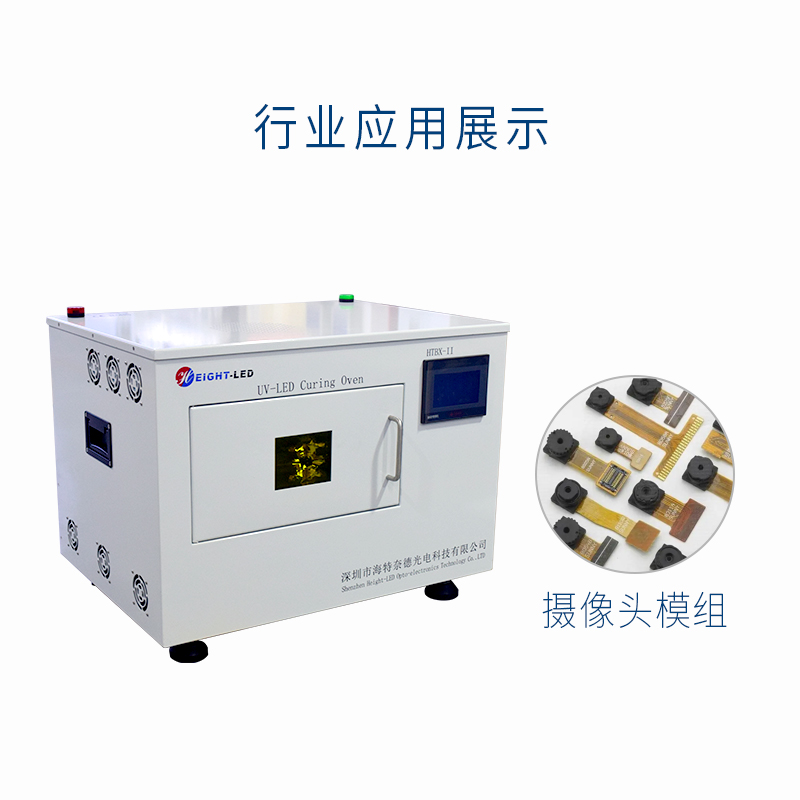

Rotary curing oven luminous area: top 250 x 250mm, side 250mm x 60mm x 3 UVLED curing oven wavelength:365nm Dimensions:L708mm x W470mm x H518mm
I. Product Features
1、Lamp beads adopt imported chips
2、Oven wall mounted reflective material to enhance the curing efficiency
3、Rotating tray, adjustable speed to ensure that the product can be cured on all sides.
4、Human-machine interface, simple operation, digital display, intuitive and easy to understand
5. see-through window, real-time observation of the product curing state, and there will be no violet light leakage
6、Intelligent safety door protection, any mode of opening the door immediately shut down the UVLED
Product Model
HTBX-II-FS250250-NL-4
Dimension
L708mm x W470mm x H518mm
Inner Cavity Size
L340mm x W300mm x H175mm
Output Area
Top 250 x 250mm Side 250mm x 60mm x 3
Wavelength
365nm
Power Density
0.5W/cm2
Lamp Bead
Imported LED beads
Lamp Bead Life
≥20000H
Heat Dissipation
Air-cooled
Control mode
PLC control
Parameter setting
Touch screen operation
Speed Adjustment
0 - 80 rad/s
Power Adjustment
Digital dimming (1 - 100%)
Supply Voltage
AC220V (50/60HZ)
Total power consumption
1050W
Net weight
60kg
Ambient Temperature
-10°C - 50°C
Relative Humidity
25% - 80%RH
