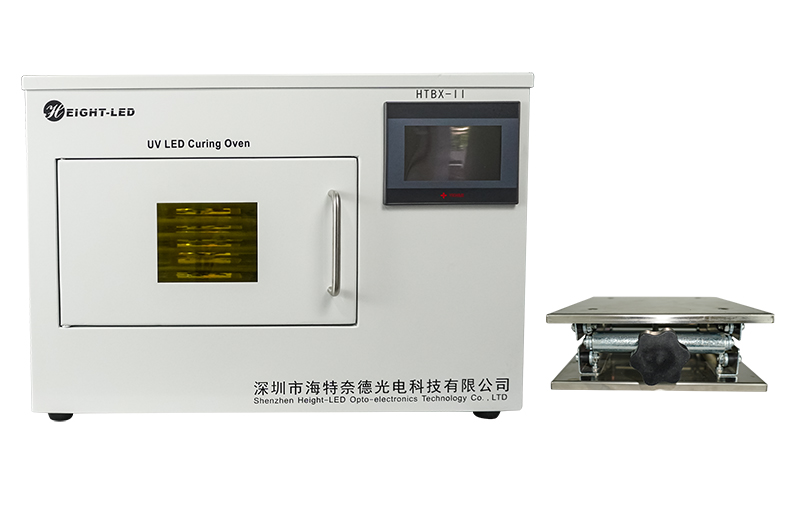

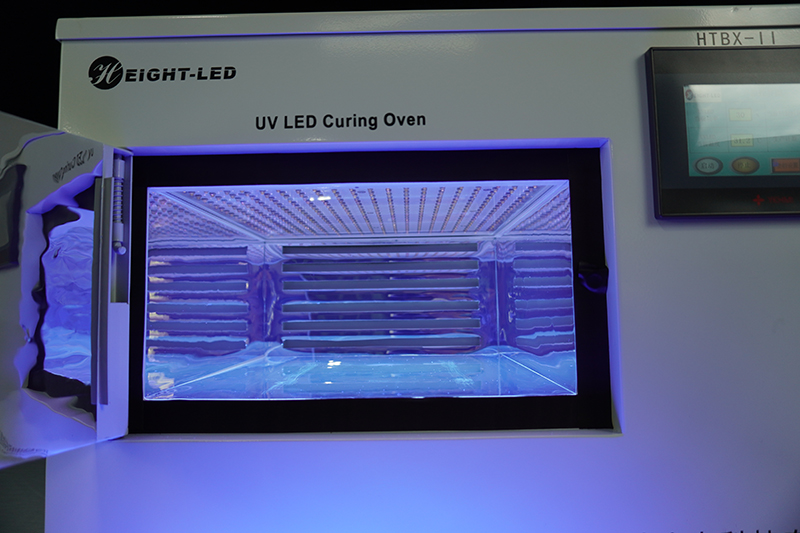

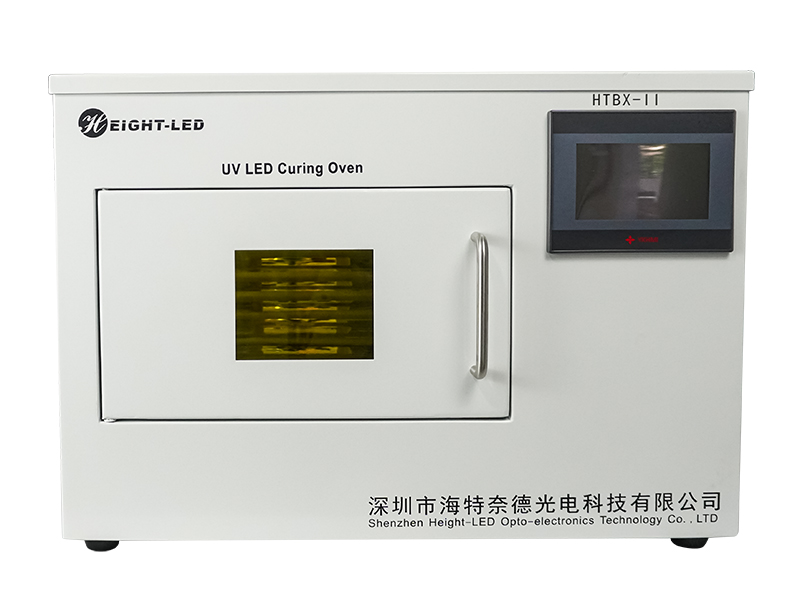

uvled ultraviolet oven product model: HTBX-II-FS240240-NH uvled ultraviolet oven light area: 240 * 240mm Wavelength: 365nm
I. Equipment features
1、Equipment with intelligent safety door protection function, as well as electronic control lock anti-dumb function, any mode of opening the door immediately shut down the UVLED.
2. the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for the
Automatic mode, the equipment according to your set irradiation time for curing, countdown automatically turn off the UVLED; manual mode, the equipment needs to manually turn on the UVLED, and real-time recording of curing time.
3、Equipment with digital dimming, production counting, historical data query and other functions.
Light source characteristics
1. high efficiency and energy saving
UVLED's output band is concentrated, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high production efficiency.
2、Wide range of application
UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.
3、Long life
UVLED long life, reduce the investment cost of equipment. That is on and off, no need to warm up, the number of switches does not affect the service life.
4、Green
Comply with RoHS, does not contain mercury.
Main Model
HTBX-II
External Dimension
L493mm*W456mm*H352mm
Inner cavity size
L260mm*W275mm*H130mm
Output area
240mmX240mm
Wavelength
365nm
Optical power density
0.8W/cm2 (10mm irradiation distance)
Heat Dissipation
Air-cooled
Control mode
PLC control
Parameter setting
Touch screen operation
Power Adjustment
Digital dimming (1-100%)
Anti-dumbness function
Electric locking anti-dumbing function
Alarm function
High temperature alarm
Power supply voltage
AC100V-AC240V (50/60HZ)
Power consumption
1200W
Net weight
35KG
Ambient temperature and humidity
Ambient temperature: -10℃-50℃
Relative humidity: 25%-80%RH
