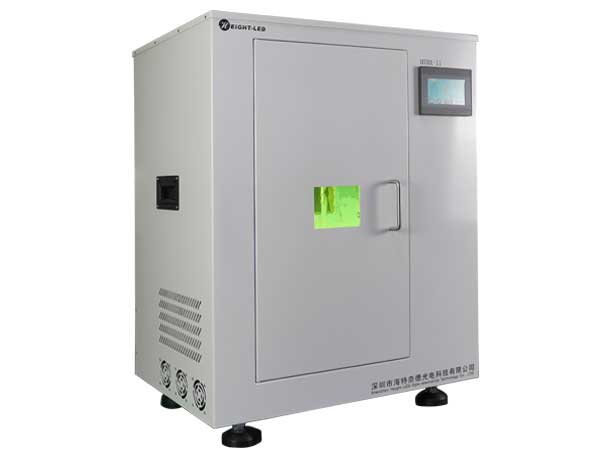

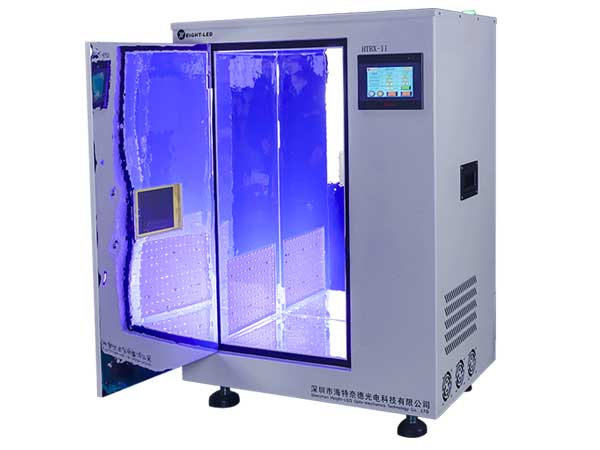

Product Name:200*150mm UVLED curing box Lighting area:200*150mm*2 Wavelength: 365nm Heat dissipation mode: air-cooled
First, UVLED curing box equipment features
1、Equipment with digital dimming, production counting, historical data query function.
2、Equipment with intelligent safety door protection, open the door in any mode immediately shut down the UVLED.
3. the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, countdown automatically turn off the UVLED; manual mode, UVLED curing box equipment need to manually turn on the UVLED, and real-time recording of curing time.
Second, the light source characteristics
1、Green
RoHS compliant, does not contain mercury.
2. long life
UVLED long life, reduce the investment cost of equipment. That is, open and close, without preheating, UVLED curing box switch times do not affect the service life.
3. high efficiency and energy saving
UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.
4. UVLED curing box wide range of applications
UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation of the work, suitable for all kinds of heat-sensitive materials curing.
Main Model
HTBX-II
External Dimension
L603mm*W403mm*H850mm
Inner cavity size
L300*W260*H600mm
Output area
200mm*150mm*2
Wavelength
365nm
Optical Power Density
500mW/cm2 (10mm irradiation distance)
Lamp Bead Brand
Seoul, Korea
Lamp Bead Life
≥20000H
Heat Dissipation
Air-cooled
Control mode
PLC control
Parameter setting
Touch screen operation
Power Adjustment
Digital dimming (1-100%)
Power Voltage
AC220V 50HZ
Power Consumption
900W
Net weight
75KG
Ambient temperature and humidity
Ambient temperature: -10℃-50℃
Relative humidity: 25%-80%RH
Warranty time
1 year
