?The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

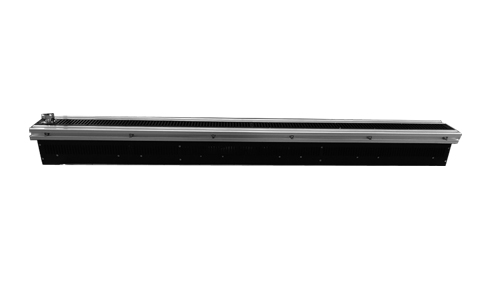

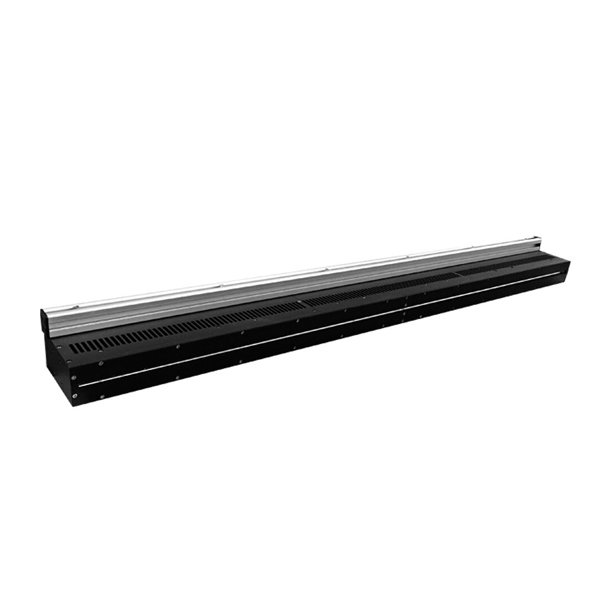

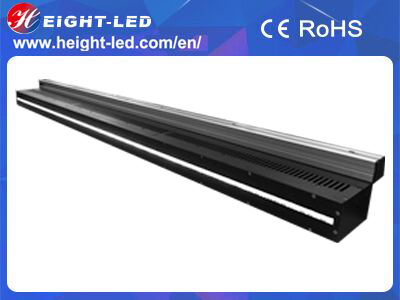

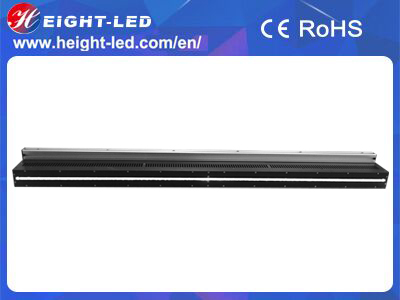

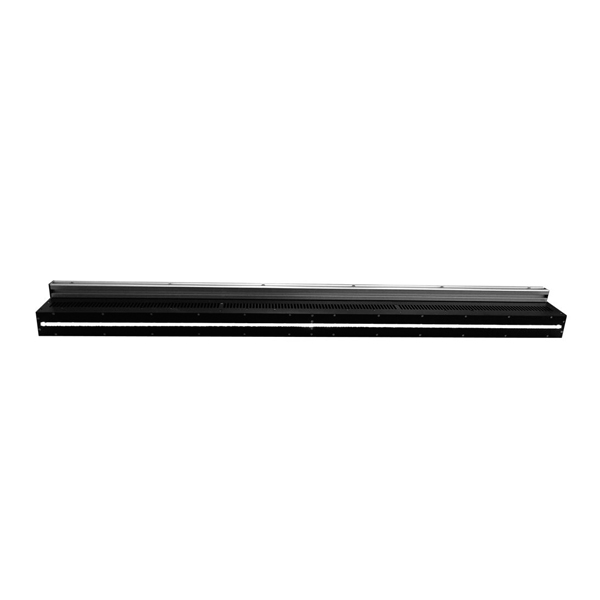

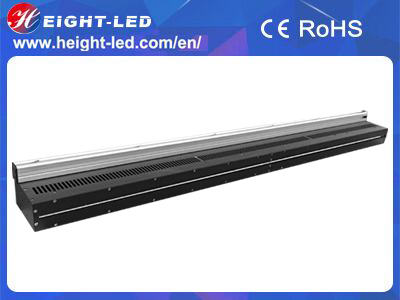

This is a high performance UVLED curing system, the system includes the controller, UVLED irradiation head and cable.
UVLED head with imported high intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the
use of forced air cooling, the effective curing area of 1110*7mm, support for external signal input and trigger,
can be equipped with semi-automatic or fully automated production line.
Wavelength
Curing area
Electric power
Optic power
Cooling method
365nm
1110X7mm
600W
3000mW/cm2
Air cooling
395nm
6000mW/cm2
