The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

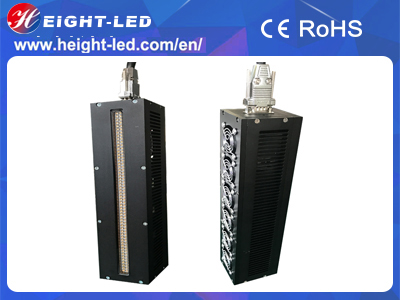

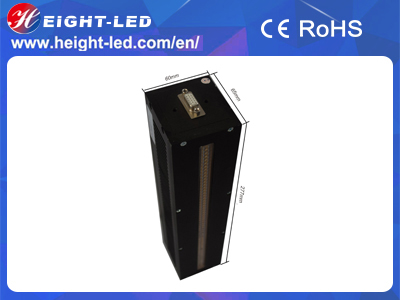

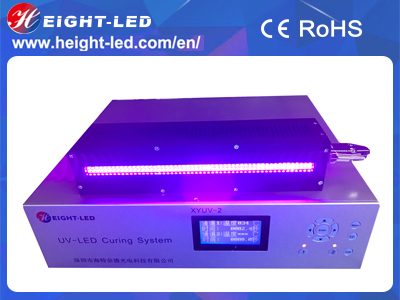

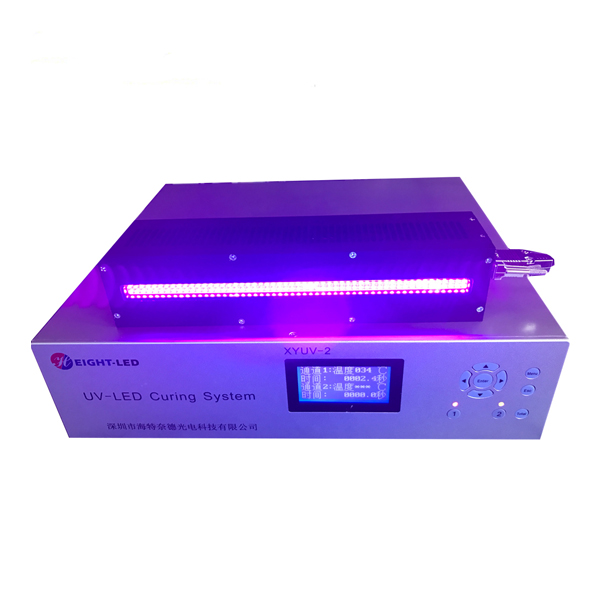

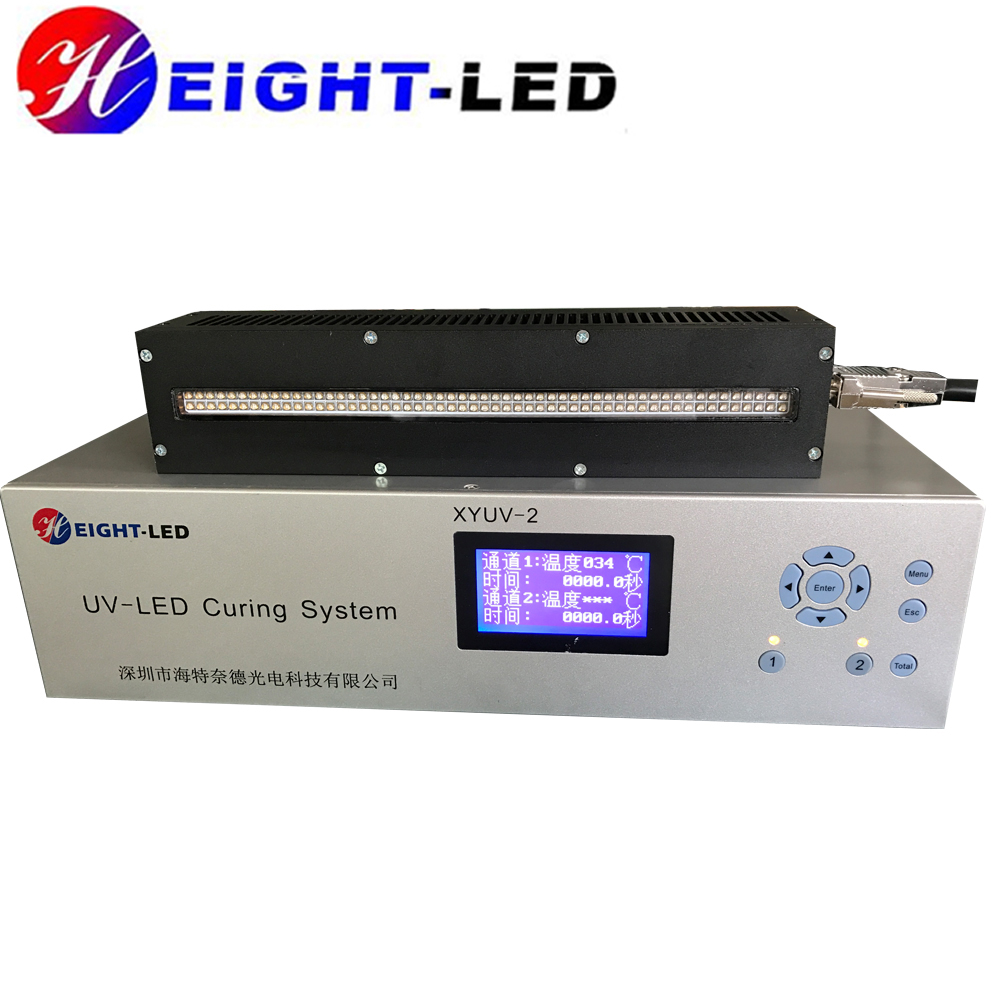

XYUV-2-FS25010-NH is a high quality UVLED surface light sourc curing system, the system includes the
controller, UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated
UV spectral wavelength of 365nm,385nm,395nm,405nm, the use of forced air cooling, the effective curing
area of 250X10mm,support for external signal input and trigger, can be equipped with semi-automatic or
fully automated production line .

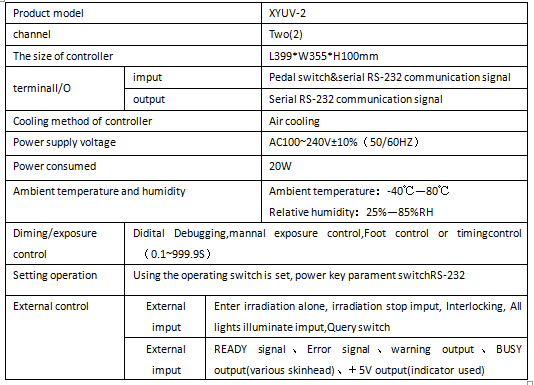

Technical data of controller:
Technical data of uv led light:
Wavelength
Electric Power
Optic Power
Curing Area
Cooling Method
365nm
324W
2500mW/cm2
250x10mm
Fan Cooling
