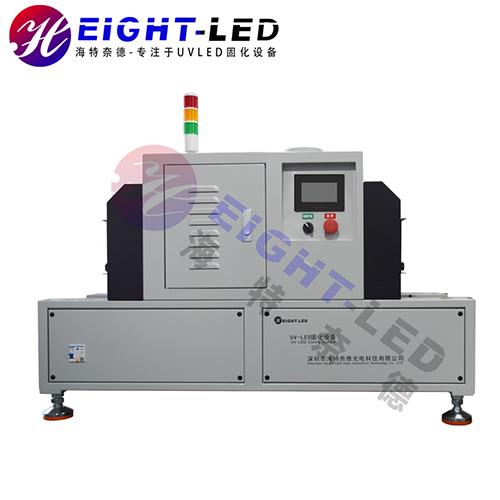

Cabinet UVLED curing machine, instead of traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep UV, low energy consumption, high efficiency.
I. Equipment features
1, the device supports real-time monitoring of UVLED current, UVLED failure alarm function and energy-saving protection function.
2, the device provides continuous mode and back-end mode optional, continuous mode, click the start button, the UV machine conveyor belt and UVLED has been working, click the stop button to stop the UV machine work; back-end mode, click the start button, the UV machine conveyor belt and the UVLED began to work, when the back-end sensor sensor to the product, the conveyor belt and the UVLED stop working, when the product is taken away to continue to the next cycle. The product is taken away and continue to enter the next cycle.
3, the equipment has a digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.
Specification
Main Model
HTCD-II
UV machine external dimensions
l1200mm*w470mm*h980mm
Light source size
l253mm*w240mm*h110mm
Lighting area
200mmX200mm
Wavelength
365/385/395/405 (optional)
Optical power density
365nm 385nm 0.8W/cm2 (10mm irradiation distance)
Lamp bead brand
395nm 405nm 1.2W/cm2 (10mm irradiation distance)
Lamp Bead Life
Seoul, Korea
Heat Dissipation
≥20000H
Control mode
Air-cooled
Parameter setting
PLC control
Power Adjustment
Touch screen operation
Speed Setting
Digital dimming (10-100%)
Power supply voltage
0.5-5m/min
Power consumption
AC100V-AC240V (50/60HZ)
Net weight
1000W
Ambient temperature and humidity
65KG
Warranty time
Ambient temperature: -20℃-40℃ Relative humidity: 25%-80%RH
