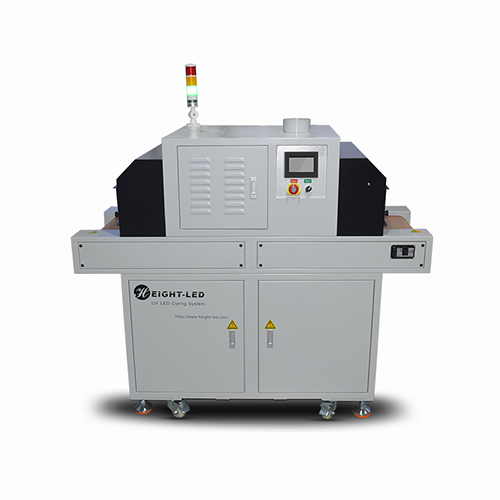

UVLED curing machine light area: 400x200mm Wavelength: 365-405nm optional Optical power density: 0.8W/cm2 or 1.2W/cm2 (surface light source parameters can be customized)
I. Product Features
1、Light source shell adopts 6061 aluminum alloy
2、Light beads adopt imported chips
3. man-machine interface, simple operation, digital display, intuitive and easy to understand
4. high efficiency, DSP digital system, anti-high voltage impact, fault self-test
5. good heat dissipation, stable and reliable system
6. the use of internationally renowned accessories, high security and stability
Specification
Model
HTCS-II-FS400200-BH
Dimension
l1500 * w670 * h1500mm
Light source size
l460 * w260 * h110mm
Light-emitting area
400 * 200mm
Wavelength
365 / 385 / 395 / 405nm (optional)
Luminous Power Density
365nm 385nm 0.8W/cm2 (10mm irradiation distance)
Lamp Bead
395nm 405nm 1.2W/cm2 (10mm irradiation distance)
Lamp Bead Life
Imported LED beads
Heat Dissipation
≥20000H
Control mode
Air-cooled
Parameter setting
PLC control
Power Adjustment
Touch screen operation
Speed Setting
Digital dimming
Supply Voltage
0.5 - 5m/min
Total power consumption
AC110V - AC240V(50/60HZ)
Net weight
2100W
Ambient temperature
168KG
