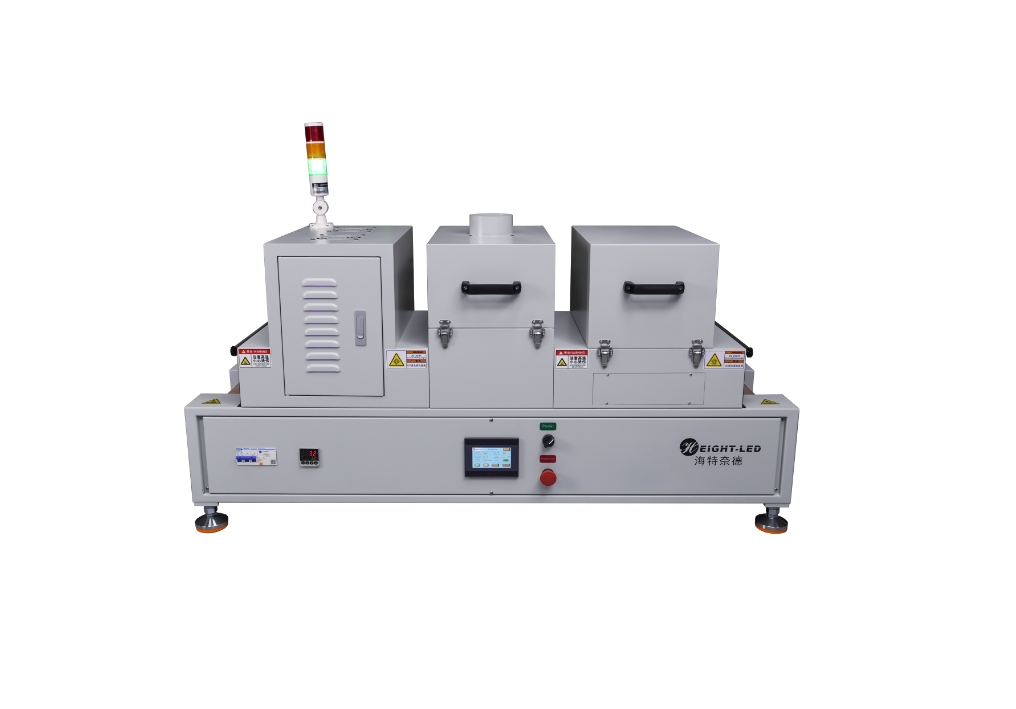

Desktop uv led curing machine Equipped with three kinds of UV curing light source
I. Equipment features
1. Simple and convenient operation, easy to operate and convenient to use.
2. Intelligent and automatic, with composite function and wide applicability.
3. flexible, suitable for multi-species, small batch production.
Second, the light source characteristics
1. Energy efficient
UVLED's output band is concentrated, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.
2. Wide range of applications
UVLED is a cold light source, low infrared heat radiation, will not cause work thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.
3. Long life
UVLED has a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.
4. Green
RoHS compliant, no mercury.
Specification
Main Model
HTCD-II
Main machine external size
l1500mm*w470mm*h750mm
Luminous area of light source
200mm*30mm
Mercury lamp luminous area
2KW 200mm
IR infrared lamp
SK300L
Wavelength
395nm
uvled light power density
395nm 12W/cm2(Veneer)
Lamp bead brand
Seoul, Korea
Lamp bead life
≥20000H
Mercury lamp life
≥800H
lR life
≥5000H
Heat dissipation mode
Air-cooled
Control mode
PLC control
Parameter setting
Touch screen operation
Three groups of light source
Independent control
Power Adjustment
Digital dimming (1-100%)
Supply Voltage
AC380V 50/60HZ
Total power consumption
5KW
Mesh Belt Load
3KG
Speed
0-50m/min
IR temperature
Room temperature -160 degrees
Net weight
130KG
Ambient temperature and humidity
Ambient temperature: -10℃-50℃
Relative humidity: 25%-80%RH
Warranty time
1 year
