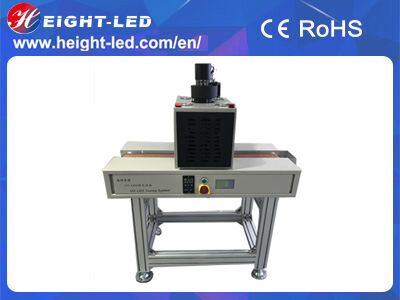

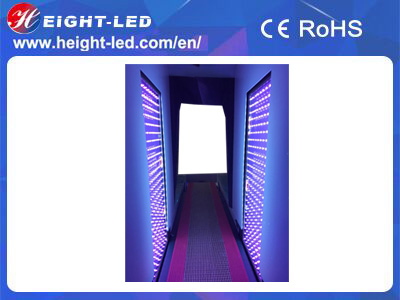

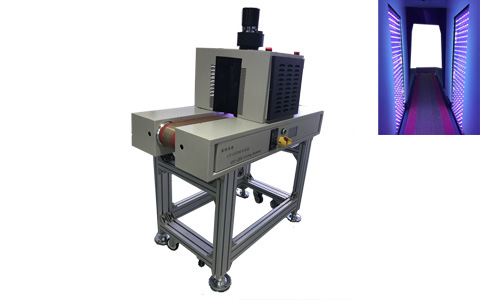

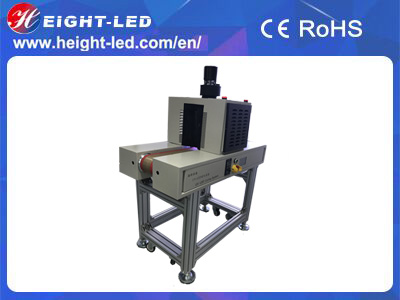

This is a high-performance UVLED curing machine system designed for the curing of lithium battery module . The system mainly includes control system, UVLED irradiation head and conveyor belt, with two sides irradiation, it has a good curing effect on the special parts which can not cure by top uv system, and the whole machine and uv led head can be customized.
* Lower heat radiation, multiple wavelengths such as 365/395/405nm, no infrared spectrum is emitted, no high temperature
heat.
* High-energy and high-purity uv led light, fast curing on UV glue, greatly improving production efficiency.
*Energy saving and environmental protection, low power consumption of LED, no warm-up time, instantaneously reach peak
irradiance,with adjustable power,power saving ratio ≥1:6,no depp uv irradiation, no ozone and mercury. It is a safer and
more environmentally friendly alternative light sources.
*Integrated design,equipment installation is convenient and fast,just install the uv led head on machine,the height of the
uv led head can also be adjusted according to specific needs.
Control system:
*panel display,touch opration, real-time
*monitoring of head of the working state
*intensity adjustable from 0-100%
*temperature monitoring
*infrared sensor control, work model optional
*speed of conveyor:0-10m/min adjustable
*whole machine size:L1000*W500*H1050mm
UV LED irradiation head
*wavelength:365nm
*curing area:240x100mm
*optic power:1100mW/cm2(10mm irradiation distance)
*recommended height of irradiation:10-100mm
*dimension:L260*W160*H80mm
*cooling method: air cooling
