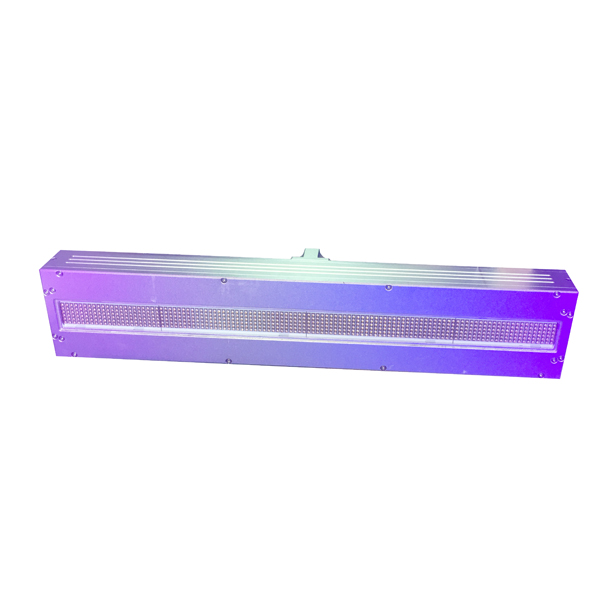

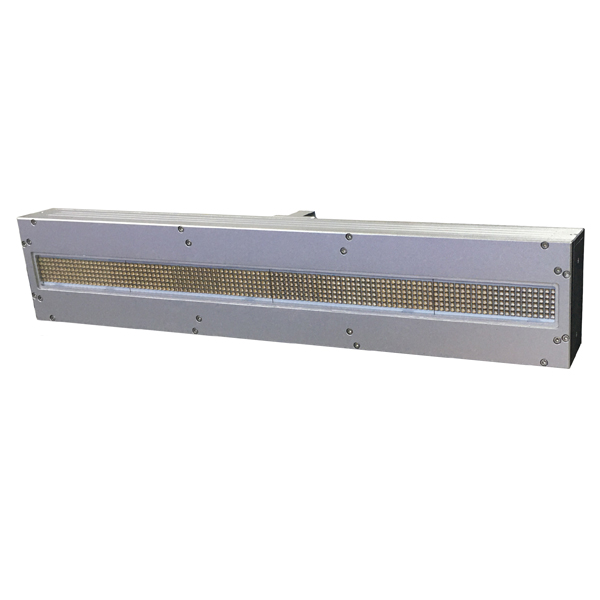

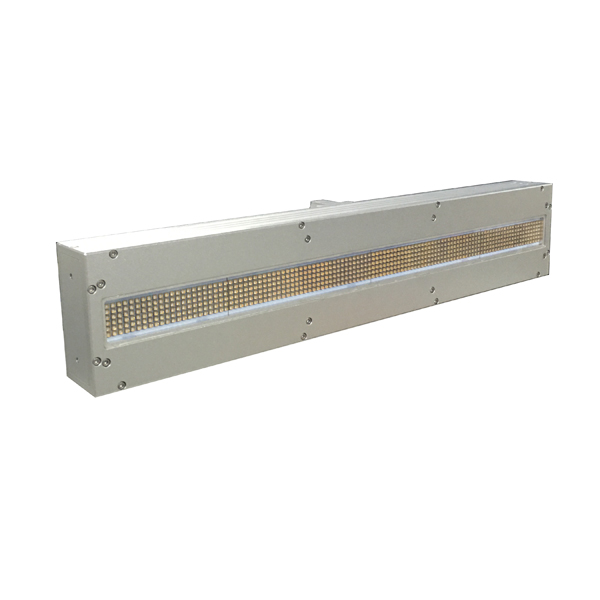

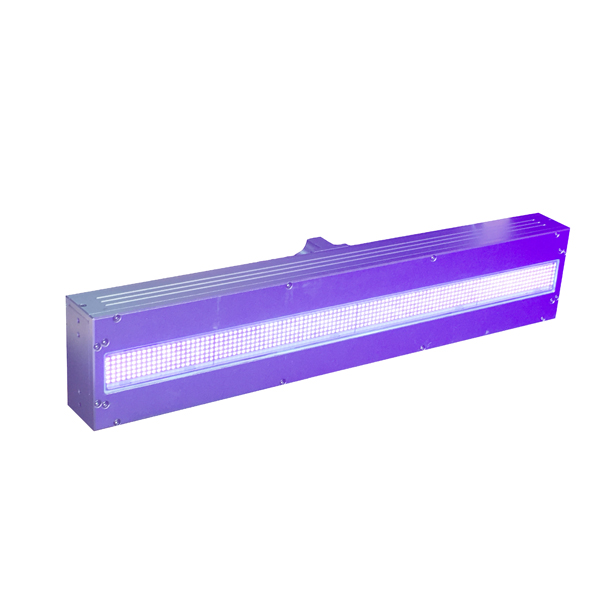

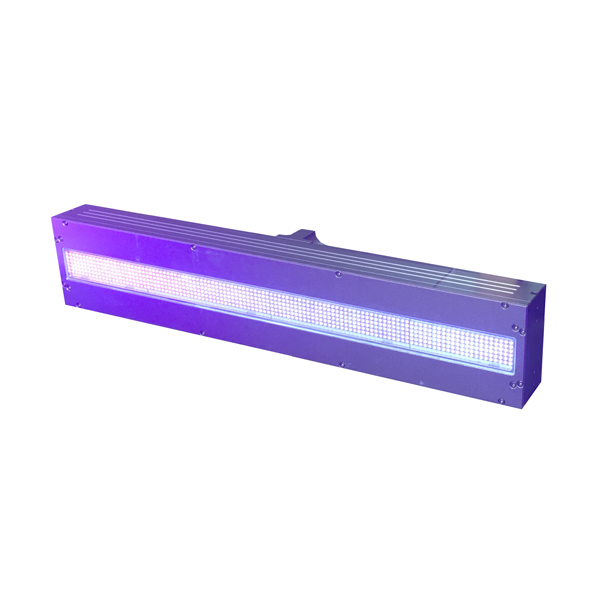

This is a high-performance UVLED curing system. The system mainly includes a controller and a UVLED irradiation head. The UV spectrum wavelength is 365nm. It uses forced water cooling to dissipate heat. The effective curing area is 500X30mm.
Product Features
.No infrared radiation, cold light source, suitable for curing all kinds of heat sensitive materials.
.No need to warm up when starting up, it is ready to use immediately, the maximum light intensity can be reached
instantaneously.
.Power saving, easy to control.
.Mercury-free, ozone-free safety and environmental protection.
.Lampshade protection.
Parameter of 500x30mm uvled area curing light source
Wavelength
Optic power
Electric power
Curing area
Cooling method
365nm
1980W
7.5W/cm2
500*30mm
Water cooling
Light sources with different wavelengths, different irradiation powers and different irradiation
areas can be customized according to requirements
