The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

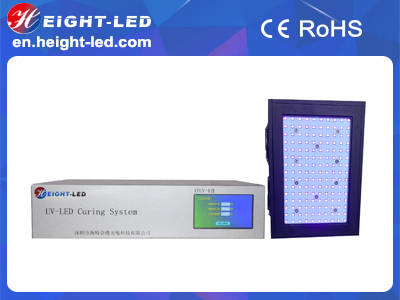

XYUV-4II-FS150100-NL is a high-performance UVLED curing system, the system includes the controller, UVLED irradiation
head and cable.UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm,385nm,
395nm,405nm,the use of forced air cooling, the effective curing area of150x100mm, support for external signal input
and trigger,can be equipped with semi-automatic or fully automated production line .

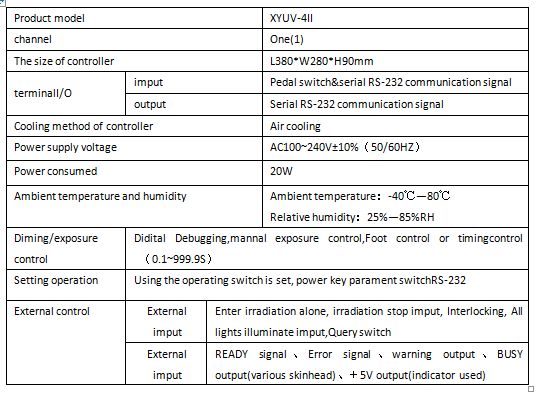

Technical data of controller:

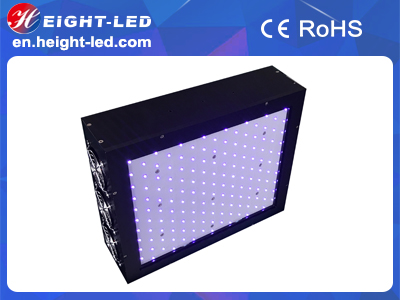

Technical data of uv led light:
Wavelength
Electric Power
Optic Power
Curing Area
Cooling Method
365nm
450W
1200mW/cm2
150x100mm
Fan cooling
395nm
2400mW/cm2
